Twin Disc
ARNESON SURFACE DRIVES
ASD08

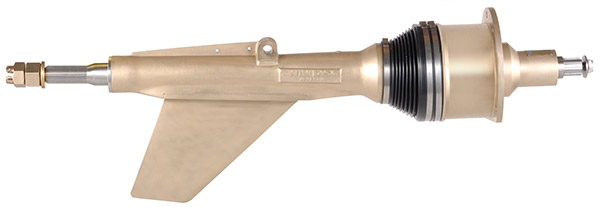

DESCRIPTION
- Bronze in-line assembly
- Internal lube oil reservoir
- Trim and steering cylinder with external hoses and fittings
- Standard (or optional longer) fin
- Standard 25-tooth (or optional 26-tooth) splined propeller shaft
- Installation manual, owner’s manual and drive ball wrench (one per ship set)
ACCESSORIES
- Rolla surface-piercing propellers
- External cylinder haul effect position sensors with gauge
- Hydraulic power steering system
- Driveline (cardan shaft)
- Tie-bar (mechanical or hydraulic – for catamaran vessels)
- High-bar pedestal (for 3+ engine vessels)
- Inboard cylinder mounting options
TECHNICAL DATA
| ASD08B1L
| ASD08B3L
| ASD08B3L
|
| Maximum Input Torque
| 1200 lbs-ft
| 1200 lbs-ft
| 1200 lbs-ft
|
| Maximum Input Torque
| 1200 lbs-ft
| 909 lbs-ft
| 909 lbs-ft
|
| Maximum Input Torque
| 1200 lbs-ft
| 845 lbs-ft
| 845 lbs-ft
|
| Maximum Input Torque
| 1200 lbs-ft
| 785 lbs-ft
| 785 lbs-ft
|
| Unit Weight
| 285 lbs
| C: 458 lbs
| C: 485 lbs
|
| Overall Length
| 42”
| 54”
| 54”
|
| Nominal Shaft Diameter
| 2”
| 2”
| 2”
|
| Steering Angle (total)
| 40°
| 40°
| 40°
|
| Trim Angle
| 15°
| 15°
| 15°
|

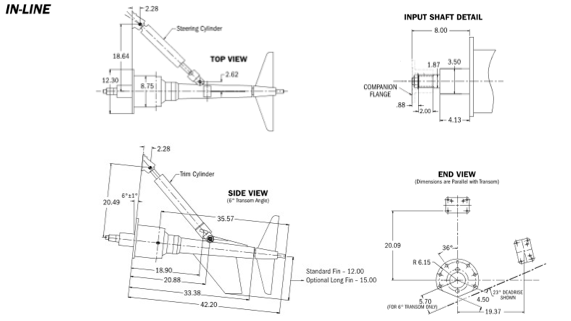

SCHEMATICS

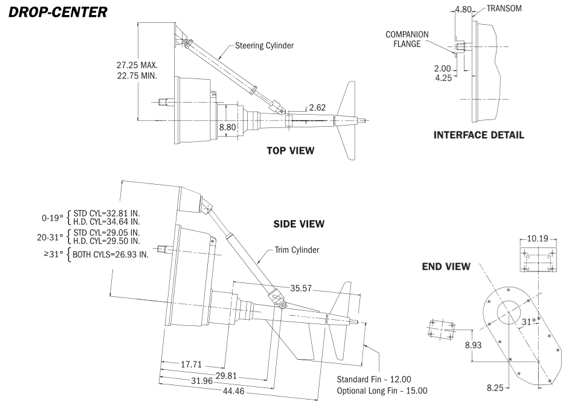

SCHEMATICS
