Twin Disc
ARNESON SURFACE DRIVES

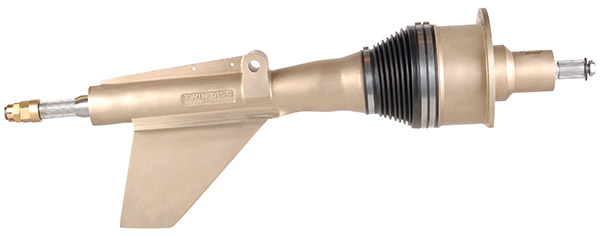

ASD12
DESCRIPTION
- Bronze in-line (ASD12B1lU)
- Bronze thrust assembly
- Internal lube oil reservoir
- Steering cylinder with external hoses and fittings
- Trim cylinder with external hoses and fittings
ACCESSORIES
- Anode Kit
- Cylinder position indicator kits with gauge
- Hydraulic power steering system
- Gearbox adapter
- Driveline (cardan shaft)
- Companion (input) flange
- Tie-bar (mechanical or hydraulic – for multiple engine vessels)
- Inboard cylinder mounting kit
- Propeller
TECHNICAL DATA
| ASD12B1LU
|
| Reduction Ratio
| 1.00:1
|
| Maximum Input Torque
| 4800 ft-lbs
|
| Unit Weight
| 785 lbs
|
| Overall Length
| 63”
|
| Nominal Shaft Diameter
| 3.3”
|
| Steering Angle
| 40°
|
| Trim Angle
| 15°
|
