Twin Disc
ARNESON SURFACE DRIVES
DESCRIPTION
- Aluminum in-line (ASD16A1lU)
- Aluminum thrust assembly
- Internal lube oil reservoir
- Steering cylinder with external hoses and fittings
- Trim cylinder with external hoses and fittings
- Installation manual, owner’s manual and drive ball wrench (one per ship set)
ACCESSORIES
- Anode Kit
- Cylinder position indicator kits with gauge
- Hydraulic power steering system
- Gearbox adapter
- Driveline (cardan shaft)
- Companion (input) flange
- Tie-bar (mechanical or hydraulic – for multiple engine vessels)
- Propeller
TECHNICAL DATA
| ASD16A1LU
|
| Reduction Ratio
| 1.00:1
|
| Maximum Input Torque
| 16,500 ft-lbs
|
| Unit Weight
| 1,985 lbs
|
| Overall Length
| 87”
|
| Nominal Shaft Diameter
| 4.5”
|
| Steering Angle
| 36°
|
| Trim Angle
| 15°
|

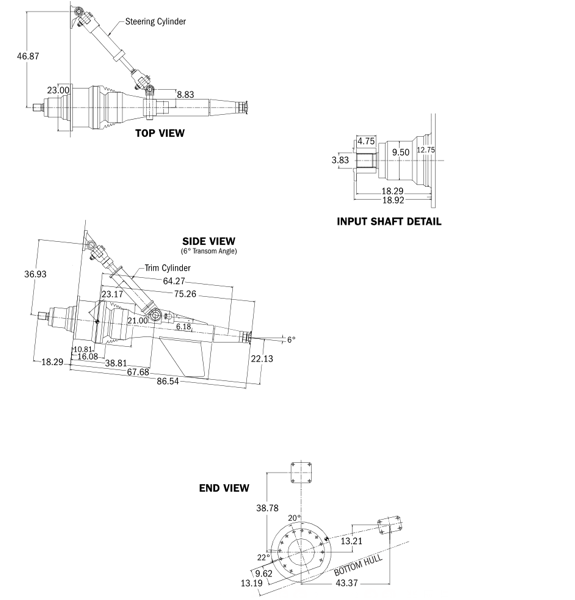

SCHEMATICS
