| Ratio (X :1) | Part Number | Configuration | Max. Input Torque Nm (lb-ft) | Max. Power Allowed Without H.E. kW (hp) | Maximum Input Shaft Speed | SAE Housing | Flywheel Size |
| 0.60 | ITR14342012 | Housing | 400 (296) | 75 (100) | 2400 | 4 | 10.0″ |
| 0.67 | ITR14342013 | Housing | 400 (296) | 75 (100) | 2500 | 4 | 10.0″ |
| 1.00 | ITR14342005 | Housing | 400 (296) | 75 (100) | 3000 | 4 | 10.0″ |
| 1.20 | ITR14342009 | Housing | 380 (281) | 75 (100) | 3000 | 4 | 10.0″ |
| 1.50 | ITR14342010 | Housing | 350 (259) | 75 (100) | 3000 | 4 | 10.0″ |
| 2.00 | ITR14342006 | Housing | 320 (237) | 75 (100) | 3000 | 4 | 10.0″ |
| 3.00 | ITR14342007 | Housing | 260 (193) | 75 (100) | 3000 | 4 | 10.0″ |
| 3.66 | ITR14342019 | Housing | 230 (170) | 75 (100) | 3000 | 4 | 10.0″ |
| 5.00 | ITR14342008 | Housing | 230 (170) | 75 (100) | 3000 | 4 | 10.0″ |
| 0.60 | ITR14341012 | Housing | 400 (296) | 75 (100) | 2400 | 3 | 10.0″ |
| 0.67 | ITR14341013 | Housing | 400 (296) | 75 (100) | 2500 | 3 | 10.0″ |
| 1.00 | ITR14341005 | Housing | 400 (296) | 75 (100) | 3000 | 3 | 10.0″ |
| 1.20 | ITR14341009 | Housing | 380 (281) | 75 (100) | 3000 | 3 | 10.0″ |
| 1.50 | ITR14341010 | Housing | 350 (259) | 75 (100) | 3000 | 3 | 10.0″ |
| 2.00 | ITR14341006 | Housing | 320 (237) | 75 (100) | 3000 | 3 | 10.0″ |
| 3.00 | ITR14341007 | Housing | 260 (193} | 75 (100) | 3000 | 3 | 10.0″ |
| 3.66 | ITR14341019 | Housing | 230 (170) | 75 (100) | 3000 | 3 | 10.0″ |
| 5.00 | ITR14341008 | Housing | 230 (170) | 75 (100) | 3000 | 3 | 10.0″ |
| 0.60 | ITR14351012 | Housing | 400 (296) | 75 (100) | 2400 | 3 | 11.5″ |
| 0.67 | ITR14351013 | Housing | 400 (296) | 75 (100) | 2500 | 3 | 11.5″ |
| 1.00 | ITR14351005 | Housing | 400 (296) | 75 (100) | 3000 | 3 | 11.5″ |
| 1.20 | ITR14351009 | Housing | 380 (281) | 75 (100) | 3000 | 3 | 11.5″ |
| 1.50 | ITR14351010 | Housing | 350 (259) | 75 (100) | 3000 | 3 | 11.5″ |
| 2.00 | ITR14351006 | Housing | 320 (237) | 75 (100) | 3000 | 3 | 11.5″ |
| 3.00 | ITR14351007 | Housing | 260 (193) | 75 (100) | 3000 | 3 | 11.5″ |
| 3.66 | ITR14351019 | Housing | 230 (170) | 75 (100) | 3000 | 3 | 11.5″ |
| 5.00 | ITR14351008 | Housing | 230 (170) | 75 (100) | 3000 | 3 | 11.5″ |
| 0.60 | ITR14122012 | with BD130 PTO | 400 (296) | 75 (100) | 2400 | 4 | 10.0″ |
| 0.67 | ITR14122013 | with BD130 PTO | 400 (296) | 75 (100) | 2500 | 4 | 10.0″ |
| 1.00 | ITR14122005 | with BD130 PTO | 400 (296) | 75 (100) | 3000 | 4 | 10.0″ |
| 1.20 | ITR14122009 | with BD130 PTO | 380 (281) | 75 (100) | 3000 | 4 | 10.0″ |
| 1.50 | ITR14122010 | with BD130 PTO | 350 (259) | 75 (100) | 3000 | 4 | 10.0″ |
| 2.00 | ITR14122006 | with BD130 PTO | 320 (237) | 75 (100) | 3000 | 4 | 10.0″ |
| 3.00 | ITR14122007 | with BD130 PTO | 260 (193) | 75 (100) | 3000 | 4 | 10.0″ |
| 3.66 | ITR14122019 | with BD130 PTO | 230 (170) | 75 (100) | 3000 | 4 | 10.0″ |
| 5.00 | ITR14122008 | with BD130 PTO | 230 (170) | 75 (100) | 3000 | 4 | 10.0″ |
| 0.60 | ITR14121012 | with BD130 PTO | 400 (296) | 75 (100) | 2400 | 3 | 10.0″ |
| 0.67 | ITR14121013 | with BD130 PTO | 400 (296) | 75 (100) | 2500 | 3 | 10.0″ |
| 1.00 | ITR14121005 | with BD130 PTO | 400 (296) | 75 (100) | 3000 | 3 | 10.0″ |
| 1.20 | ITR14121009 | with BD130 PTO | 380 (281) | 75 (100) | 3000 | 3 | 10.0″ |
| 1.50 | ITR14121010 | with BD130 PTO | 350 (259) | 75 (100) | 3000 | 3 | 10.0″ |
| 2.00 | ITR14121006 | with BD130 PTO | 320 (237) | 75 (100) | 3000 | 3 | 10.0″ |
| 3.00 | ITR14121007 | with BD130 PTO | 260 (193) | 75 (100) | 3000 | 3 | 10.0″ |
| 3.66 | ITR14121019 | with BD130 PTO | 230 (170) | 75 (100) | 3000 | 3 | 10.0″ |
| 5.00 | ITR14121008 | with BD130 PTO | 230 (170) | 75 (100) | 3000 | 3 | 10.0″ |
| 0.60 | ITR14132012 | with BDS145 PTO | 400 (296) | 75 (100) | 2400 | 4 | 11.5″ |
| 0.67 | ITR14132013 | with BDS145 PTO | 400 (296) | 75 (100) | 2500 | 4 | 11.5″ |
| 1.00 | ITR14132005 | with BDS145 PTO | 400 (296) | 75 (100) | 3000 | 4 | 11.5″ |
| 1.20 | ITR14132009 | with BDS145 PTO | 380 (281) | 75 (100) | 3000 | 4 | 11.5″ |
| 1.50 | ITR14132010 | with BDS145 PTO | 350 (259) | 75 (100) | 3000 | 4 | 11.5″ |
| 2.00 | ITR14132006 | with BDS145 PTO | 320 (237) | 75 (100) | 3000 | 4 | 11.5″ |
| 3.00 | ITR14132007 | with BDS145 PTO | 260 (193) | 75 (100) | 3000 | 4 | 11.5″ |
| 3.66 | ITR14132019 | with BDS145 PTO | 230 (170) | 75 (100) | 3000 | 4 | 11.5″ |
| 5.00 | ITR14132008 | with BDS145 PTO | 230 (170) | 75 (100) | 3000 | 4 | 11.5″ |
| 0.60 | ITR14131012 | with BDS145 PTO | 400 (296) | 75 (100) | 2400 | 3 | 11.5″ |
| 0.67 | ITR14131013 | with BDS145 PTO | 400 (296) | 75 (100) | 2500 | 3 | 11.5″ |
| 1.00 | ITR14131005 | with BDS145 PTO | 400 (296) | 75 (100) | 3000 | 3 | 11.5″ |
| 1.20 | ITR14131009 | with BDS145 PTO | 380 (281) | 75 (100) | 3000 | 3 | 11.5″ |
| 1.50 | ITR14131010 | with BDS145 PTO | 350 (259) | 75 (100) | 3000 | 3 | 11.5″ |
| 2.00 | ITR14131006 | with BDS145 PTO | 320 (237) | 75 (100) | 3000 | 3 | 11.5″ |
| 3.00 | ITR14131007 | with BDS145 PTO | 260 (193) | 75 (100) | 3000 | 3 | 11.5″ |
| 3.66 | ITR14131019 | with BDS145 PTO | 230 (170) | 75 (100) | 3000 | 3 | 11.5″ |
| 5.00 | ITR14131008 | with BDS145 PTO | 230 (170) | 75 (100) | 3000 | 3 | 11.5″ |
| 0.60 | ITR14220012 | with BDS130 Remote PTO | 400 (296) | 75 (100) | 2400 | N/A | N/A |
| 0.67 | ITR14220013 | with BDS130 Remote PTO | 400 (296) | 75 (100) | 2500 | N/A | N/A |
| 1.00 | ITR14220005 | with BDS130 Remote PTO | 400 (296) | 75 (100) | 3000 | N/A | N/A |
| 1.20 | ITR14220009 | with BDS130 Remote PTO | 380 (281) | 75 (100) | 3000 | N/A | N/A |
| 1.50 | ITR14220010 | with BDS130 Remote PTO | 350 (259) | 75 (100) | 3000 | N/A | N/A |
| 2.00 | ITR14220006 | with BDS130 Remote PTO | 320 (237) | 75 (100) | 3000 | N/A | N/A |
| 3.00 | ITR14220007 | with BDS130 Remote PTO | 260 (193) | 75 (100) | 3000 | N/A | N/A |
| 3.66 | ITR14220019 | with BDS130 Remote PTO | 230 (170) | 75 (100) | 3000 | N/A | N/A |
| 5.00 | ITR14220008 | with BDS130 Remote PTO | 230 (170) | 75 (100) | 3000 | N/A | N/A |
| 0.60 | ITR14230012 | with BDS145 Remote PTO | 400 (296) | 75 (100) | 2400 | N/A | N/A |
| 0.67 | ITR14230013 | with BDS145 Remote PTO | 400 (296) | 75 (100) | 2500 | N/A | N/A |
| 1.00 | ITR14230005 | with BDS145 Remote PTO | 400 (296) | 75 (100) | 3000 | N/A | N/A |
| 1.20 | ITR14230009 | with BDS145 Remote PTO | 380 (281) | 75 (100) | 3000 | N/A | N/A |
| 1.50 | ITR14230010 | with BDS145 Remote PTO | 350 (259) | 75 (100) | 3000 | N/A | N/A |
| 2.00 | ITR14230006 | with BDS145 Remote PTO | 320 (237) | 75 (100) | 3000 | N/A | N/A |
| 3.00 | ITR14230007 | with BDS145 Remote PTO | 260 (193) | 75 (100) | 3000 | N/A | N/A |
| 3.66 | ITR14230019 | with BDS145 Remote PTO | 230 (170) | 75 (100) | 3000 | N/A | N/A |
| 5.00 | ITR14230008 | with BDS145 Remote PTO | 230 (170) | 75 (100) | 3000 | N/A | N/A |

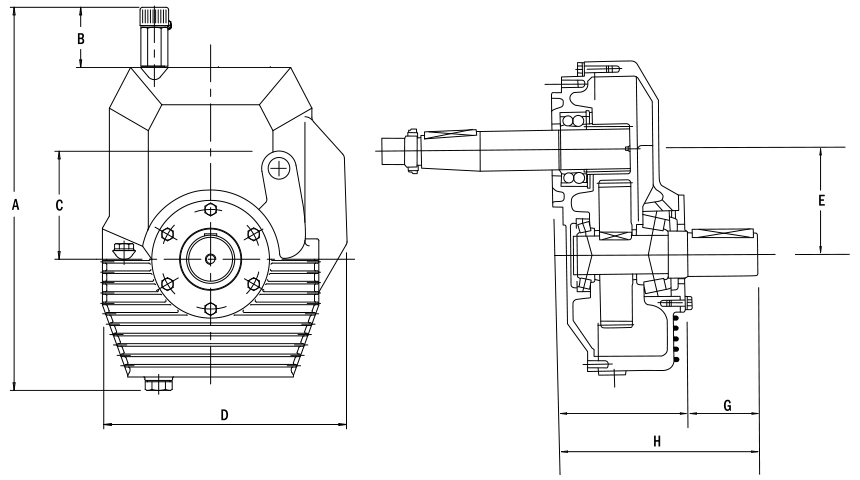

| A | B | C | D | E | F | G | H | |
| RM20 | 301.0 (11.85) | 64.5 (2.54) | 67.5 (2.66) | 192.0 (7.56) | 67.5 (2.66) | 107.0 (4.21) | 50.0 (1.97) | 157.0 (6.18) |
| RM45 | 375.0 (14.76) | 68.5 (2.70) | 88.5 (3.48) | 233.0 (9.17) | 88.5 (3.48) | 131.0 (5.16) | 70.0 (2.76) | 201.0 (7.91) |
| RM70 | 443.0 (17.44) | 68.5 (2.70) | 121.5 (4.78) | 283.0 (11.14) | 121.5 (4.78) | 142.0 (5.59) | 80.0 (3.15) | 222.0 (8.74) |
| RM100 | 459.0 (18.07) | 68.5 (2.70) | 135.0 (5.31) | 311.0 (12.24) | 135.0 (5.31) | 172.0 (6.77) | 120.0 (4.72) | 292.0 (11.50) |
| RM120 | 545.0 (21.46) | 68.5 (2.70) | 160.0 (6.30) | 378.0 (14.88) | 160.0 (6.30) | 200.0 (7.87) | 140.0 (5.51) | 340.0 (13.39) |
| RM150 | 613.0 (24.13) | 68.5 (2.70) | 189.0 (7.44) | 419.0 (16.50) | 189.0 (7.44) | 262.0 (10.31) | 140.0 (5.51) | 402.0 (15.83) |
