| Ratio (X :1) | Part Number | Configuration | Max. Input Torque Nm (lb-ft) | Max. Power Allowed Without H.E. kW (hp) | Maximum Input Shaft Speed | SAE Housing | Flywheel Size |
| 0.51 | ITR14342004 | Housing | 400 (296) | 60 (80) | 2000 | 4 | 10.0″ |
| 0.81 | ITR14342016 | Housing | 380 (281) | 60 (80) | 2700 | 4 | 10.0″ |
| 1.23 | ITR14342017 | Housing | 380 (281) | 60 (80) | 3000 | 4 | 10.0″ |
| 1.50 | ITR14342001 | Housing | 350 (259) | 60 (80) | 3000 | 4 | 10.0″ |
| 1.86 | ITR14342002 | Housing | 320 (237) | 60 (80) | 3000 | 4 | 10.0″ |
| 2.80 | ITR14342003 | Housing | 260 (193) | 60 (80) | 3000 | 4 | 10.0″ |
| 4.21 | ITR14342015 | Housing | 230 (170) | 60 (80) | 3000 | 4 | 10.0″ |
| 0.51 | ITR14341004 | Housing | 400 (296) | 60 (80) | 2000 | 3 | 10.0″ |
| 0.81 | ITR14341016 | Housing | 380 (281) | 60 (80) | 2700 | 3 | 10.0″ |
| 1.23 | ITR14341017 | Housing | 380 (281) | 60 (80) | 3000 | 3 | 10.0″ |
| 1.50 | ITR14341001 | Housing | 350 (259) | 60 (80) | 3000 | 3 | 10.0″ |
| 1.86 | ITR14341002 | Housing | 320 (237) | 60 (80) | 3000 | 3 | 10.0″ |
| 2.80 | ITR14341003 | Housing | 260 (193) | 60 (80) | 3000 | 3 | 10.0″ |
| 4.21 | ITR14341015 | Housing | 230 (170) | 60 (80) | 3000 | 3 | 10.0″ |
| 0.51 | ITR14351004 | Housing | 400 (296) | 60 (80) | 2000 | 3 | 11.5″ |
| 0.81 | ITR14351016 | Housing | 380 (281) | 60 (80) | 2700 | 3 | 11.5″ |
| 1.23 | ITR14351017 | Housing | 380 (281) | 60 (80) | 3000 | 3 | 11.5″ |
| 1.50 | ITR14351001 | Housing | 350 (259) | 60 (80) | 3000 | 3 | 11.5″ |
| 1.86 | ITR14351002 | Housing | 320 (237) | 60 (80) | 3000 | 3 | 11.5″ |
| 2.80 | ITR14351003 | Housing | 260 (193) | 60 (80) | 3000 | 3 | 11.5″ |
| 4.21 | ITR14351015 | Housing | 230 (170) | 60 (80) | 3000 | 3 | 11.5″ |
| 0.51 | ITR14122004 | with BD130 PTO | 400 (296) | 60 (80) | 2000 | 4 | 10.0″ |
| 0.81 | ITR14122016 | with BD130 PTO | 380 (281) | 60 (80) | 2700 | 4 | 10.0″ |
| 1.23 | ITR14122017 | with BD130 PTO | 380 (281) | 60 (80) | 3000 | 4 | 10.0″ |
| 1.50 | ITR14122001 | with BD130 PTO | 350 (259) | 60 (80) | 3000 | 4 | 10.0″ |
| 1.86 | ITR14122002 | with BD130 PTO | 320 (237) | 60 (80) | 3000 | 4 | 10.0″ |
| 2.80 | ITR14122003 | with BD130 PTO | 260 (193) | 60 (80) | 3000 | 4 | 10.0″ |
| 4.21 | ITR14122015 | with BD130 PTO | 230 (170) | 60 (80) | 3000 | 4 | 10.0″ |
| 0.51 | ITR14121004 | with BD130 PTO | 400 (296) | 60 (80) | 2000 | 3 | 10.0″ |
| 0.81 | ITR14121016 | with BD130 PTO | 380 (281) | 60 (80) | 2700 | 3 | 10.0″ |
| 1.23 | ITR14121017 | with BD130 PTO | 380 (281) | 60 (80) | 3000 | 3 | 10.0″ |
| 1.50 | ITR14121001 | with BD130 PTO | 350 (259) | 60 (80) | 3000 | 3 | 10.0″ |
| 1.86 | ITR14121002 | with BD130 PTO | 320 (237) | 60 (80) | 3000 | 3 | 10.0″ |
| 2.80 | ITR14121003 | with BD130 PTO | 260 (193) | 60 (80) | 3000 | 3 | 10.0″ |
| 4.21 | ITR14121015 | with BD130 PTO | 230 (170) | 60 (80) | 3000 | 3 | 10.0″ |
| 0.51 | ITR14132004 | with BD145 PTO | 400 (296) | 60 (80) | 2000 | 4 | 11.5″ |
| 0.81 | ITR14132016 | with BD145 PTO | 380 (281) | 60 (80) | 2700 | 4 | 11.5″ |
| 1.23 | ITR14132017 | with BD145 PTO | 380 (281) | 60 (80) | 3000 | 4 | 11.5″ |
| 1.50 | ITR14132001 | with BD145 PTO | 350 (259) | 60 (80) | 3000 | 4 | 11.5″ |
| 1.86 | ITR14132002 | with BD145 PTO | 320 (237) | 60 (80) | 3000 | 4 | 11.5″ |
| 2.80 | ITR14132003 | with BD145 PTO | 260 (193) | 60 (80) | 3000 | 4 | 11.5″ |
| 4.21 | ITR14132015 | with BD145 PTO | 230 (170) | 60 (80) | 3000 | 4 | 11.5″ |
| 0.51 | ITR14131004 | with BD145 PTO | 400 (296) | 60 (80) | 2000 | 3 | 11.5″ |
| 0.81 | ITR14131016 | with BD145 PTO | 380 (281) | 60 (80) | 2700 | 3 | 11.5″ |
| 1.23 | ITR14131017 | with BD145 PTO | 380 (281) | 60 (80) | 3000 | 3 | 11.5″ |
| 1.50 | ITR14131001 | with BD145 PTO | 350 (259) | 60 (80) | 3000 | 3 | 11.5″ |
| 1.86 | ITR14131002 | with BD145 PTO | 320 (237) | 60 (80) | 3000 | 3 | 11.5″ |
| 2.80 | ITR14131003 | with BD145 PTO | 260 (193) | 60 (80) | 3000 | 3 | 11.5″ |
| 4.21 | ITR14131015 | with BD145 PTO | 230 (170) | 60 (80) | 3000 | 3 | 11.5″ |
| 0.51 | ITR14220004 | with BDS130 Remote PTO | 400 (296) | 60 (80) | 2000 | N/A | N/A |
| 0.81 | ITR14220016 | with BDS130 Remote PTO | 380 (281) | 60 (80) | 2700 | N/A | N/A |
| 1.23 | ITR14220017 | with BDS130 Remote PTO | 380 (281) | 60 (80) | 3000 | N/A | N/A |
| 1.50 | ITR14220001 | with BDS130 Remote PTO | 350 (259) | 60 (80) | 3000 | N/A | N/A |
| 1.86 | ITR14220002 | with BDS130 Remote PTO | 320 (237) | 60 (80) | 3000 | N/A | N/A |
| 2.80 | ITR14220003 | with BDS130 Remote PTO | 260 (193) | 60 (80) | 3000 | N/A | N/A |
| 4.21 | ITR14220015 | with BDS130 Remote PTO | 230 (170) | 60 (80) | 3000 | N/A | N/A |
| 0.51 | ITR14230004 | with BDS145 Remote PTO | 400 (296) | 60 (80) | 2000 | N/A | N/A |
| 0.81 | ITR14230016 | with BDS145 Remote PTO | 380 (281) | 60 (80) | 2700 | N/A | N/A |
| 1.23 | ITR14230017 | with BDS145 Remote PTO | 380 (281) | 60 (80) | 3000 | N/A | N/A |
| 1.50 | ITR14230001 | with BDS145 Remote PTO | 350 (259) | 60 (80) | 3000 | N/A | N/A |
| 1.86 | ITR14230002 | with BDS145 Remote PTO | 320 (237) | 60 (80) | 3000 | N/A | N/A |
| 2.80 | ITR14230003 | with BDS145 Remote PTO | 260 (193) | 60 (80) | 3000 | N/A | N/A |
| 4.21 | ITR14230015 | with BDS145 Remote PTO | 230 (170) | 60 (80) | 3000 | N/A | N/A |

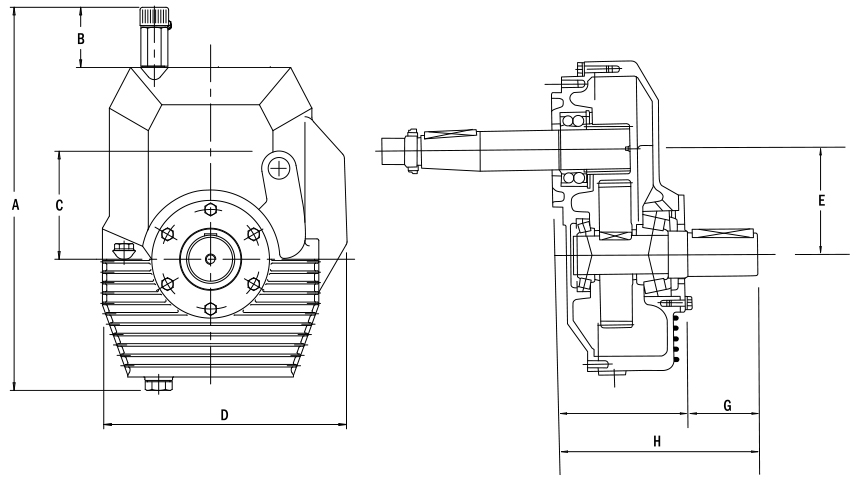

| A | B | C | D | E | F | G | H | |
| RM20 | 301.0 (11.85) | 64.5 (2.54) | 67.5 (2.66) | 192.0 (7.56) | 67.5 (2.66) | 107.0 (4.21) | 50.0 (1.97) | 157.0 (6.18) |
| RM45 | 375.0 (14.76) | 68.5 (2.70) | 88.5 (3.48) | 233.0 (9.17) | 88.5 (3.48) | 131.0 (5.16) | 70.0 (2.76) | 201.0 (7.91) |
| RM70 | 443.0 (17.44) | 68.5 (2.70) | 121.5 (4.78) | 283.0 (11.14) | 121.5 (4.78) | 142.0 (5.59) | 80.0 (3.15) | 222.0 (8.74) |
| RM100 | 459.0 (18.07) | 68.5 (2.70) | 135.0 (5.31) | 311.0 (12.24) | 135.0 (5.31) | 172.0 (6.77) | 120.0 (4.72) | 292.0 (11.50) |
| RM120 | 545.0 (21.46) | 68.5 (2.70) | 160.0 (6.30) | 378.0 (14.88) | 160.0 (6.30) | 200.0 (7.87) | 140.0 (5.51) | 340.0 (13.39) |
| RM150 | 613.0 (24.13) | 68.5 (2.70) | 189.0 (7.44) | 419.0 (16.50) | 189.0 (7.44) | 262.0 (10.31) | 140.0 (5.51) | 402.0 (15.83) |
