| Ratio (X :1) | Part Number | Configuration | Max. Input Torque Nm (lb-ft) | Max. Power Allowed Without H.E. kW (hp) | Maximum Input Shaft Speed | SAE Housing | Flywheel Size |
| 0.50 | ITR15353010 | Housing | 1000 (741) | 85 (113) | 2000 | 3 | 11.5″ |
| 1.02 | ITR15353002 | Housing | 880 (652) | 85 (113) | 2500 | 3 | 11.5″ |
| 1.70 | ITR15353009 | Housing | 740 (548) | 85 (113) | 2500 | 3 | 11.5″ |
| 2.00 | ITR15353003 | Housing | 700 (519) | 85 (113) | 2500 | 3 | 11.5″ |
| 3.00 | ITR15353004 | Housing | 510 (378) | 85 (113) | 2500 | 3 | 11.5″ |
| 3.55 | ITR15353014 | Housing | 450 (333) | 85 (113) | 2500 | 3 | 11.5″ |
| 0.50 | ITR15352010 | Housing | 1000 (741) | 85 (113) | 2000 | 2 | 11.5″ |
| 1.02 | ITR15352002 | Housing | 880 (652) | 85 (113) | 2500 | 2 | 11.5″ |
| 1.70 | ITR15352009 | Housing | 740 (548) | 85 (113) | 2500 | 2 | 11.5″ |
| 2.00 | ITR15352003 | Housing | 700 (519) | 85 (113) | 2500 | 2 | 11.5″ |
| 3.00 | ITR15352004 | Housing | 510 (378) | 85 (113) | 2500 | 2 | 11.5″ |
| 3.55 | ITR15352014 | Housing | 450 (333) | 85 (113) | 2500 | 2 | 11.5″ |
| 0.50 | ITR15351010 | Housing | 1000 (741) | 85 (113) | 2000 | 1 | 11.5″ |
| 1.02 | ITR15351002 | Housing | 880 (652) | 85 (113) | 2500 | 1 | 11.5″ |
| 1.70 | ITR15351009 | Housing | 740 (548) | 85 (113) | 2500 | 1 | 11.5″ |
| 2.00 | ITR15351003 | Housing | 700 (519) | 85 (113) | 2500 | 1 | 11.5″ |
| 3.00 | ITR15351004 | Housing | 510 (378) | 85 (113) | 2500 | 1 | 11.5″ |
| 3.55 | ITR15351014 | Housing | 450 (333) | 85 (113) | 2500 | 1 | 11.5″ |
| 0.50 | ITR15124010 | with BD145 PTO | 1000 (741) | 85 (113) | 2000 | 4 | 11.5″ |
| 1.02 | ITR15124002 | with BD145 PTO | 880 (652) | 85 (113) | 2500 | 4 | 11.5″ |
| 1.70 | ITR15124009 | with BD145 PTO | 740 (548) | 85 (113) | 2500 | 4 | 11.5″ |
| 2.00 | ITR15124003 | with BD145 PTO | 700 (519) | 85 (113) | 2500 | 4 | 11.5″ |
| 3.00 | ITR15124004 | with BD145 PTO | 510 (378) | 85 (113) | 2500 | 4 | 11.5″ |
| 3.55 | ITR15124014 | with BD145 PTO | 450 (333) | 85 (113) | 2500 | 4 | 11.5″ |
| 0.50 | ITR15123010 | with BD145 PTO | 1000 (741) | 85 (113) | 2000 | 3 | 11.5″ |
| 1.02 | ITR15123002 | with BD145 PTO | 880 (652) | 85 (113) | 2500 | 3 | 11.5″ |
| 1.70 | ITR15123009 | with BD145 PTO | 740 (548) | 85 (113) | 2500 | 3 | 11.5″ |
| 2.00 | ITR15123003 | with BD145 PTO | 700 (519) | 85 (113) | 2500 | 3 | 11.5″ |
| 3.00 | ITR15123004 | with BD145 PTO | 510 (378) | 85 (113) | 2500 | 3 | 11.5″ |
| 3.55 | ITR15123014 | with BD145 PTO | 450 (333) | 85 (113) | 2500 | 3 | 11.5″ |
| 0.50 | ITR15133010 | with BD290 PTO | 1000 (741) | 85 (113) | 2000 | 3 | 11.5″ |
| 1.02 | ITR15133002 | with BD290 PTO | 880 (652) | 85 (113) | 2500 | 3 | 11.5″ |
| 1.70 | ITR15133009 | with BD290 PTO | 740 (548) | 85 (113) | 2500 | 3 | 11.5″ |
| 2.00 | ITR15133003 | with BD290 PTO | 700 (519) | 85 (113) | 2500 | 3 | 11.5″ |
| 3.00 | ITR15133004 | with BD290 PTO | 510 (378) | 85 (113) | 2500 | 3 | 11.5″ |
| 3.55 | ITR15133014 | with BD290 PTO | 450 (333) | 85 (113) | 2500 | 3 | 11.5″ |
| 0.50 | ITR15132010 | with BD290 PTO | 1000 (741) | 85 (113) | 2000 | 2 | 11.5″ |
| 1.02 | ITR15132002 | with BD290 PTO | 880 (652) | 85 (113) | 2500 | 2 | 11.5″ |
| 1.70 | ITR15132009 | with BD290 PTO | 740 (548) | 85 (113) | 2500 | 2 | 11.5″ |
| 2.00 | ITR15132003 | with BD290 PTO | 700 (519) | 85 (113) | 2500 | 2 | 11.5″ |
| 3.00 | ITR15132004 | with BD290 PTO | 510 (378) | 85 (113) | 2500 | 2 | 11.5″ |
| 3.55 | ITR15132014 | with BD290 PTO | 450 (333) | 85 (113) | 2500 | 2 | 11.5″ |
| 0.50 | ITR15131010 | with BD290 PTO | 1000 (741) | 85 (113) | 2000 | 1 | 11.5″ |
| 1.02 | ITR15131002 | with BD290 PTO | 880 (652) | 85 (113) | 2500 | 1 | 11.5″ |
| 1.70 | ITR15131009 | with BD290 PTO | 740 (548) | 85 (113) | 2500 | 1 | 11.5″ |
| 2.00 | ITR15131003 | with BD290 PTO | 700 (519) | 85 (113) | 2500 | 1 | 11.5″ |
| 3.00 | ITR15131004 | with BD290 PTO | 510 (378) | 85 (113) | 2500 | 1 | 11.5″ |
| 3.55 | ITR15131014 | with BD290 PTO | 450 (333) | 85 (113) | 2500 | 1 | 11.5″ |
| 0.50 | ITR15220010 | with BDS145 Remote PTO | 1000 (741) | 85 (113) | 2000 | N/A | N/A |
| 1.02 | ITR15220002 | with BDS145 Remote PTO | 880 (652) | 85 (113) | 2500 | N/A | N/A |
| 1.70 | ITR15220009 | with BDS145 Remote PTO | 740 (548) | 85 (113) | 2500 | N/A | N/A |
| 2.00 | ITR15220003 | with BDS145 Remote PTO | 700 (519) | 85 (113) | 2500 | N/A | N/A |
| 3.00 | ITR15220004 | with BDS145 Remote PTO | 510 (378) | 85 (113) | 2500 | N/A | N/A |
| 3.55 | ITR15220014 | with BDS145 Remote PTO | 450 (333) | 85 (113) | 2500 | N/A | N/A |
| 0.50 | ITR15230010 | with BDS290 Remote PTO | 1000 (741) | 85 (113) | 2000 | N/A | N/A |
| 1.02 | ITR15230002 | with BDS290 Remote PTO | 880 (652) | 85 (113) | 2500 | N/A | N/A |
| 1.70 | ITR15230009 | with BDS290 Remote PTO | 740 (548) | 85 (113) | 2500 | N/A | N/A |
| 2.00 | ITR15230003 | with BDS290 Remote PTO | 700 (519) | 85 (113) | 2500 | N/A | N/A |
| 3.00 | ITR15230004 | with BDS290 Remote PTO | 510 (378) | 85 (113) | 2500 | N/A | N/A |
| 3.55 | ITR15230014 | with BDS290 Remote PTO | 450 (333) | 85 (113) | 2500 | N/A | N/A |

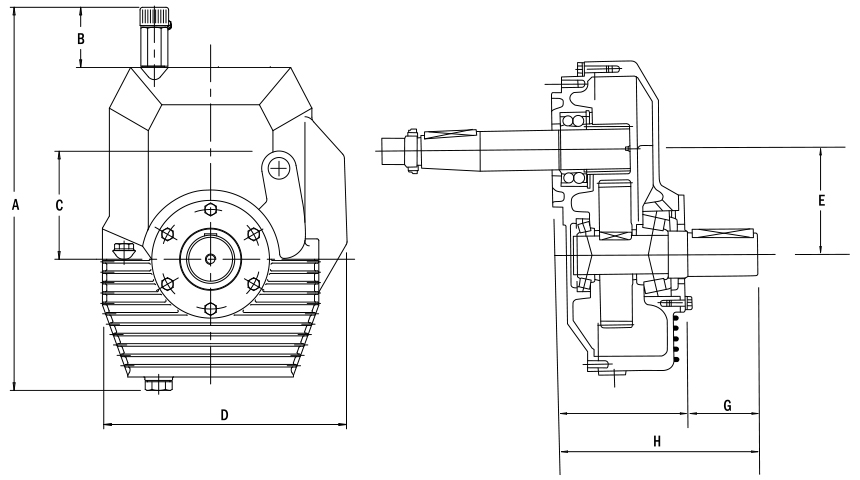

| A | B | C | D | E | F | G | H | |
| RM20 | 301.0 (11.85) | 64.5 (2.54) | 67.5 (2.66) | 192.0 (7.56) | 67.5 (2.66) | 107.0 (4.21) | 50.0 (1.97) | 157.0 (6.18) |
| RM45 | 375.0 (14.76) | 68.5 (2.70) | 88.5 (3.48) | 233.0 (9.17) | 88.5 (3.48) | 131.0 (5.16) | 70.0 (2.76) | 201.0 (7.91) |
| RM70 | 443.0 (17.44) | 68.5 (2.70) | 121.5 (4.78) | 283.0 (11.14) | 121.5 (4.78) | 142.0 (5.59) | 80.0 (3.15) | 222.0 (8.74) |
| RM100 | 459.0 (18.07) | 68.5 (2.70) | 135.0 (5.31) | 311.0 (12.24) | 135.0 (5.31) | 172.0 (6.77) | 120.0 (4.72) | 292.0 (11.50) |
| RM120 | 545.0 (21.46) | 68.5 (2.70) | 160.0 (6.30) | 378.0 (14.88) | 160.0 (6.30) | 200.0 (7.87) | 140.0 (5.51) | 340.0 (13.39) |
| RM150 | 613.0 (24.13) | 68.5 (2.70) | 189.0 (7.44) | 419.0 (16.50) | 189.0 (7.44) | 262.0 (10.31) | 140.0 (5.51) | 402.0 (15.83) |
