| Ratio (X :1) | Part Number | Configuration | Max. Input Torque Nm (lb-ft) | Max. Power Allowed Without H.E. kW (hp) | Maximum Input Shaft Speed | SAE Housing | Flywheel Size |
| 0.67 | ITR15353001 | Housing | 830 (615) | 68 (91) | 2000 | 3 | 11.5″ |
| 1.50 | ITR15353006 | Housing | 500 (370) | 68 (91) | 2500 | 3 | 11.5″ |
| 2.00 | ITR15353007 | Housing | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 2.60 | ITR15353011 | Housing | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 2.80 | ITR15353005 | Housing | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 3.00 | ITR15353008 | Housing | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 0.67 | ITR15352001 | Housing | 830 (615) | 68 (91) | 2000 | 2 | 11.5″ |
| 1.50 | ITR15352006 | Housing | 500 (370) | 68 (91) | 2500 | 2 | 11.5″ |
| 2.00 | ITR15352007 | Housing | 480 (356) | 68 (91) | 2500 | 2 | 11.5″ |
| 2.60 | ITR15352011 | Housing | 480 (356) | 68 (91) | 2500 | 2 | 11.5″ |
| 2.80 | ITR15352005 | Housing | 480 (356) | 68 (91) | 2500 | 2 | 11.5″ |
| 3.00 | ITR15352008 | Housing | 480 (356) | 68 (91) | 2500 | 2 | 11.5″ |
| 0.67 | ITR15351001 | Housing | 830 (615) | 68 (91) | 2000 | 1 | 11.5″ |
| 1.50 | ITR15351006 | Housing | 500 (370) | 68 (91) | 2500 | 1 | 11.5″ |
| 2.00 | ITR15351007 | Housing | 480 (356) | 68 (91) | 2500 | 1 | 11.5″ |
| 2.60 | ITR15351011 | Housing | 480 (356) | 68 (91) | 2500 | 1 | 11.5″ |
| 2.80 | ITR15351005 | Housing | 480 (356) | 68 (91) | 2500 | 1 | 11.5″ |
| 3.00 | ITR15351008 | Housing | 480 (356) | 68 (91) | 2500 | 1 | 11.5″ |
| 0.67 | ITR15124001 | with BD145 PTO | 830 (615) | 68 (91) | 2000 | 4 | 11.5″ |
| 1.50 | ITR15124006 | with BD145 PTO | 500 (370) | 68 (91) | 2500 | 4 | 11.5″ |
| 2.00 | ITR15124007 | with BD145 PTO | 480 (356) | 68 (91) | 2500 | 4 | 11.5″ |
| 2.60 | ITR15124011 | with BD145 PTO | 480 (356) | 68 (91) | 2500 | 4 | 11.5″ |
| 2.80 | ITR15124005 | with BD145 PTO | 480 (356) | 68 (91) | 2500 | 4 | 11.5″ |
| 3.00 | ITR15124008 | with BD145 PTO | 480 (356) | 68 (91) | 2500 | 4 | 11.5″ |
| 0.67 | ITR15123001 | with BD145 PTO | 830 (615) | 68 (91) | 2000 | 3 | 11.5″ |
| 1.50 | ITR15123006 | with BD145 PTO | 500 (370) | 68 (91) | 2500 | 3 | 11.5″ |
| 2.00 | ITR15123007 | with BD145 PTO | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 2.60 | ITR15123011 | with BD145 PTO | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 2.80 | ITR15123005 | with BD145 PTO | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 3.00 | ITR15123008 | with BD145 PTO | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 0.67 | ITR15133001 | with BD290 PTO | 830 (615) | 68 (91) | 2000 | 3 | 11.5″ |
| 1.50 | ITR15133006 | with BD290 PTO | 500 (370) | 68 (91) | 2500 | 3 | 11.5″ |
| 2.00 | ITR15133007 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 2.60 | ITR15133011 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 2.80 | ITR15133005 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 3.00 | ITR15133008 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 3 | 11.5″ |
| 0.67 | ITR15132001 | with BD290 PTO | 830 (615) | 68 (91) | 2000 | 2 | 11.5″ |
| 1.50 | ITR15132006 | with BD290 PTO | 500 (370) | 68 (91) | 2500 | 2 | 11.5″ |
| 2.00 | ITR15132007 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 2 | 11.5″ |
| 2.60 | ITR15132011 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 2 | 11.5″ |
| 2.80 | ITR15132005 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 2 | 11.5″ |
| 3.00 | ITR15132008 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 2 | 11.5″ |
| 0.67 | ITR15131001 | with BD290 PTO | 830 (615) | 68 (91) | 2000 | 1 | 11.5″ |
| 1.50 | ITR15131006 | with BD290 PTO | 500 (370) | 68 (91) | 2500 | 1 | 11.5″ |
| 2.00 | ITR15131007 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 1 | 11.5″ |
| 2.60 | ITR15131011 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 1 | 11.5″ |
| 2.80 | ITR15131005 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 1 | 11.5″ |
| 3.00 | ITR15131008 | with BD290 PTO | 480 (356) | 68 (91) | 2500 | 1 | 11.5″ |
| 0.67 | ITR15220001 | with BDS145 Remote PTO | 830 (615) | 68 (91) | 2000 | N/A | N/A |
| 1.50 | ITR15220006 | with BDS145 Remote PTO | 500 (370) | 68 (91) | 2500 | N/A | N/A |
| 2.00 | ITR15220007 | with BDS145 Remote PTO | 480 (356) | 68 (91) | 2500 | N/A | N/A |
| 2.60 | ITR15220011 | with BDS145 Remote PTO | 480 (356) | 68 (91) | 2500 | N/A | N/A |
| 2.80 | ITR15220005 | with BDS145 Remote PTO | 480 (356) | 68 (91) | 2500 | N/A | N/A |
| 3.00 | ITR15220008 | with BDS145 Remote PTO | 480 (356) | 68 (91) | 2500 | N/A | N/A |
| 0.67 | ITR15230001 | with BDS290 Remote PTO | 830 (615) | 68 (91) | 2000 | N/A | N/A |
| 1.50 | ITR15230006 | with BDS290 Remote PTO | 500 (370) | 68 (91) | 2500 | N/A | N/A |
| 2.00 | ITR15230007 | with BDS290 Remote PTO | 480 (356) | 68 (91) | 2500 | N/A | N/A |
| 2.60 | ITR15230011 | with BDS290 Remote PTO | 480 (356) | 68 (91) | 2500 | N/A | N/A |
| 2.80 | ITR15230005 | with BDS290 Remote PTO | 480 (356) | 68 (91) | 2500 | N/A | N/A |
| 3.00 | ITR15230008 | with BDS290 Remote PTO | 480 (356) | 68 (91) | 2500 | N/A | N/A |

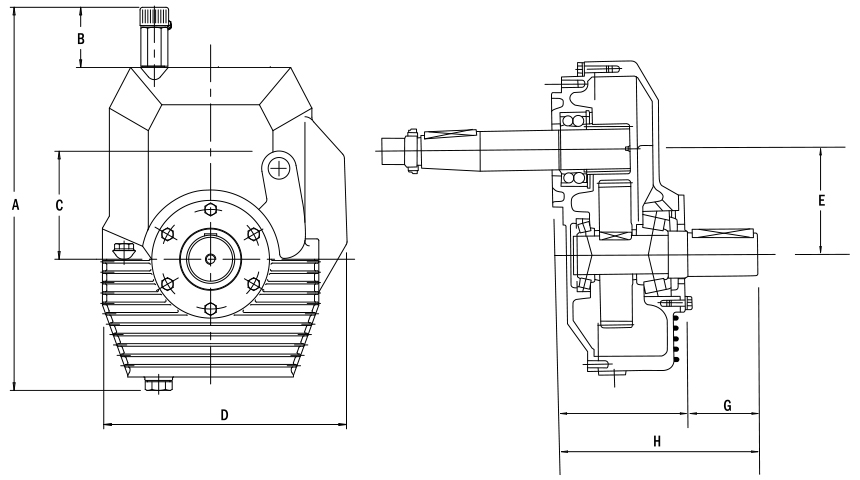

| A | B | C | D | E | F | G | H | |
| RM20 | 301.0 (11.85) | 64.5 (2.54) | 67.5 (2.66) | 192.0 (7.56) | 67.5 (2.66) | 107.0 (4.21) | 50.0 (1.97) | 157.0 (6.18) |
| RM45 | 375.0 (14.76) | 68.5 (2.70) | 88.5 (3.48) | 233.0 (9.17) | 88.5 (3.48) | 131.0 (5.16) | 70.0 (2.76) | 201.0 (7.91) |
| RM70 | 443.0 (17.44) | 68.5 (2.70) | 121.5 (4.78) | 283.0 (11.14) | 121.5 (4.78) | 142.0 (5.59) | 80.0 (3.15) | 222.0 (8.74) |
| RM100 | 459.0 (18.07) | 68.5 (2.70) | 135.0 (5.31) | 311.0 (12.24) | 135.0 (5.31) | 172.0 (6.77) | 120.0 (4.72) | 292.0 (11.50) |
| RM120 | 545.0 (21.46) | 68.5 (2.70) | 160.0 (6.30) | 378.0 (14.88) | 160.0 (6.30) | 200.0 (7.87) | 140.0 (5.51) | 340.0 (13.39) |
| RM150 | 613.0 (24.13) | 68.5 (2.70) | 189.0 (7.44) | 419.0 (16.50) | 189.0 (7.44) | 262.0 (10.31) | 140.0 (5.51) | 402.0 (15.83) |
