| Ratio (X :1) | Part Number | Configuration | Max. Input Torque Nm (lb-ft) | Max. Power Allowed Without H.E. kW (hp) | Maximum Input Shaft Speed | SAE Housing | Flywheel Size |
| 0.64 | ITR11311003 | Housing | 75 (56) | 12 (16) | 2800 | 5 | 6.5″ |
| 1.89 | ITR11311001 | Housing | 55 (41) | 12 (16) | 3500 | 5 | 6.5″ |
| 2.47 | ITR11311002 | Housing | 50 (37) | 12 (16) | 3500 | 5 | 6.5″ |
| 0.64 | ITR11321003 | Housing | 75 (56) | 12 (16) | 2800 | 5 | 7.5″ |
| 1.89 | ITR11321001 | Housing | 55 (41) | 12 (16) | 3500 | 5 | 7.5″ |
| 2.47 | ITR11321002 | Housing | 50 (37) | 12 (16) | 3500 | 5 | 7.5″ |
| 0.64 | ITR11111003 | with BD110 PTO | 75 (56) | 12 (16) | 2800 | 5 | 6.5″ |
| 1.89 | ITR11111001 | with BD110 PTO | 55 (41) | 12 (16) | 3500 | 5 | 6.5″ |
| 2.47 | ITR11111002 | with BD110 PTO | 50 (37) | 12 (16) | 3500 | 5 | 6.5″ |
| 0.64 | ITR11111103 | with BD110 PTO | 75 (56) | 12 (16) | 2800 | 5 | 7.5″ |
| 1.89 | ITR11111101 | with BD110 PTO | 55 (41) | 12 (16) | 3500 | 5 | 7.5″ |
| 2.47 | ITR11111102 | with BD110 PTO | 50 (37) | 12 (16) | 3500 | 5 | 7.5″ |
| 0.64 | ITR11122003 | with BD112 PTO | 75 (56) | 12 (16) | 2800 | 4 | 7.5″ |
| 1.89 | ITR11122001 | with BD112 PTO | 55 (41) | 12 (16) | 3500 | 4 | 7.5″ |
| 2.47 | ITR11122002 | with BD112 PTO | 50 (37) | 12 (16) | 3500 | 4 | 7.5″ |
| 0.64 | ITR11220003 | with BDS112 Remote PTO | 75 (56) | 12 (16) | 2800 | N/A | N/A |
| 1.89 | ITR11220001 | with BDS112 Remote PTO | 55 (41) | 12 (16) | 3500 | N/A | N/A |
| 2.47 | ITR11220002 | with BDS112 Remote PTO | 50 (37) | 12 (16) | 3500 | N/A | N/A |

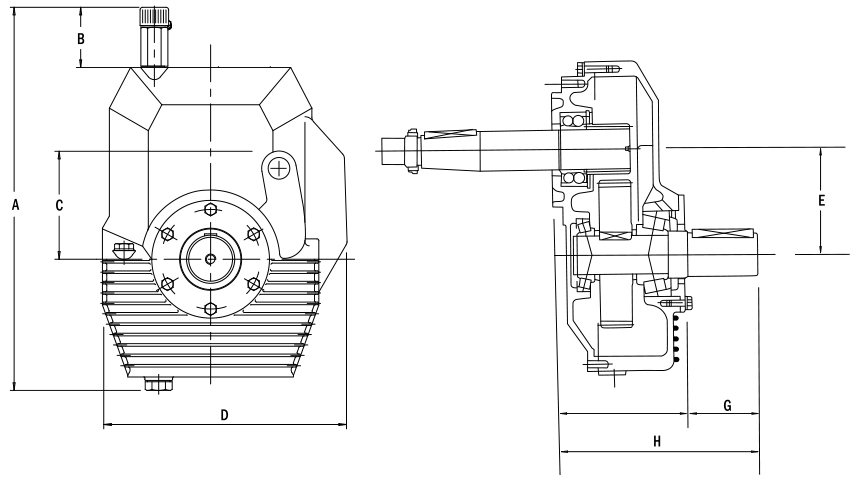

| A | B | C | D | E | F | G | H | |
| RM20 | 301.0 (11.85) | 64.5 (2.54) | 67.5 (2.66) | 192.0 (7.56) | 67.5 (2.66) | 107.0 (4.21) | 50.0 (1.97) | 157.0 (6.18) |
| RM45 | 375.0 (14.76) | 68.5 (2.70) | 88.5 (3.48) | 233.0 (9.17) | 88.5 (3.48) | 131.0 (5.16) | 70.0 (2.76) | 201.0 (7.91) |
| RM70 | 443.0 (17.44) | 68.5 (2.70) | 121.5 (4.78) | 283.0 (11.14) | 121.5 (4.78) | 142.0 (5.59) | 80.0 (3.15) | 222.0 (8.74) |
| RM100 | 459.0 (18.07) | 68.5 (2.70) | 135.0 (5.31) | 311.0 (12.24) | 135.0 (5.31) | 172.0 (6.77) | 120.0 (4.72) | 292.0 (11.50) |
| RM120 | 545.0 (21.46) | 68.5 (2.70) | 160.0 (6.30) | 378.0 (14.88) | 160.0 (6.30) | 200.0 (7.87) | 140.0 (5.51) | 340.0 (13.39) |
| RM150 | 613.0 (24.13) | 68.5 (2.70) | 189.0 (7.44) | 419.0 (16.50) | 189.0 (7.44) | 262.0 (10.31) | 140.0 (5.51) | 402.0 (15.83) |
