| Ratio (X :1) | Part Number | Configuration | Max. Input Torque Nm (lb-ft) | Max. Power Allowed Without H.E. kW (hp) | Maximum Input Shaft Speed | SAE Housing | Flywheel Size |
| 0.67 | ITR12311009 | Housing | 165 (122) | 30 (40) | 2800 | 5 | 6.5″ |
| 1.00 | ITR12311005 | Housing | 161 (119) | 30 (40) | 3500 | 5 | 6.5″ |
| 2.00 | ITR12311006 | Housing | 121 (89) | 30 (40) | 3500 | 5 | 6.5″ |
| 2.88 | ITR12311007 | Housing | 100 (74) | 30 (40) | 3500 | 5 | 6.5″ |
| 3.40 | ITR12311012 | Housing | 80 (59) | 30 (40) | 3500 | 5 | 6.5″ |
| 4.00 | ITR12311010 | Housing | 80 (59) | 30 (40) | 3500 | 5 | 6.5″ |
| 5.00 | ITR12311008 | Housing | 71 (52) | 30 (40) | 3500 | 5 | 6.5″ |
| 0.67 | ITR12321009 | Housing | 165 (122) | 30 (40) | 2800 | 5 | 7.5″ |
| 1.00 | ITR12321005 | Housing | 161 (119) | 30 (40) | 3500 | 5 | 7.5″ |
| 2.00 | ITR12321006 | Housing | 121 (89) | 30 (40) | 3500 | 5 | 7.5″ |
| 2.88 | ITR12321007 | Housing | 100 (74) | 30 (40) | 3500 | 5 | 7.5″ |
| 3.40 | ITR12321012 | Housing | 80 (59) | 30 (40) | 3500 | 5 | 7.5″ |
| 4.00 | ITR12321010 | Housing | 80 (59) | 30 (40) | 3500 | 5 | 7.5″ |
| 5.00 | ITR12321008 | Housing | 71 (52) | 30 (40) | 3500 | 5 | 7.5″ |
| 0.67 | ITR12322009 | Housing | 165 (122) | 30 (40) | 2800 | 4 | 7.5″ |
| 1.00 | ITR12322005 | Housing | 161 (119) | 30 (40) | 3500 | 4 | 7.5″ |
| 2.00 | ITR12322006 | Housing | 121 (89) | 30 (40) | 3500 | 4 | 7.5″ |
| 2.88 | ITR12322007 | Housing | 100 (74) | 30 (40) | 3500 | 4 | 7.5″ |
| 3.40 | ITR12322012 | Housing | 80 (59) | 30 (40) | 3500 | 4 | 7.5″ |
| 4.00 | ITR12322010 | Housing | 80 (59) | 30 (40) | 3500 | 4 | 7.5″ |
| 5.00 | ITR12322008 | Housing | 71 (52) | 30 (40) | 3500 | 4 | 7.5″ |
| 0.67 | ITR12332009 | Housing | 165 (122) | 30 (40) | 2800 | 4 | 8.0″ |
| 1.00 | ITR12332005 | Housing | 161 (119) | 30 (40) | 3500 | 4 | 8.0″ |
| 2.00 | ITR12332006 | Housing | 121 (89) | 30 (40) | 3500 | 4 | 8.0″ |
| 2.88 | ITR12332007 | Housing | 100 (74) | 30 (40) | 3500 | 4 | 8.0″ |
| 3.40 | ITR12332012 | Housing | 80 (59) | 30 (40) | 3500 | 4 | 8.0″ |
| 4.00 | ITR12332010 | Housing | 80 (59) | 30 (40) | 3500 | 4 | 8.0″ |
| 5.00 | ITR12332008 | Housing | 71 (52) | 30 (40) | 3500 | 4 | 8.0″ |
| 0.67 | ITR12111009 | with BD110 PTO | 165 (122) | 30 (40) | 2800 | 5 | 6.5″ |
| 1.00 | ITR12111005 | with BD110 PTO | 161 (119) | 30 (40) | 3500 | 5 | 6.5″ |
| 2.00 | ITR12111006 | with BD110 PTO | 121 (89) | 30 (40) | 3500 | 5 | 6.5″ |
| 2.88 | ITR12111007 | with BD110 PTO | 100 (74) | 30 (40) | 3500 | 5 | 6.5″ |
| 3.40 | ITR12111012 | with BD110 PTO | 80 (59) | 30 (40) | 3500 | 5 | 6.5″ |
| 4.00 | ITR12111010 | with BD110 PTO | 80 (59) | 30 (40) | 3500 | 5 | 6.5″ |
| 5.00 | ITR12111008 | with BD110 PTO | 71 (52) | 30 (40) | 3500 | 5 | 6.5″ |
| 0.67 | ITR12111109 | with BD110 PTO | 165 (122) | 30 (40) | 2800 | 5 | 7.5″ |
| 1.00 | ITR12111105 | with BD110 PTO | 161 (119) | 30 (40) | 3500 | 5 | 7.5″ |
| 2.00 | ITR12111106 | with BD110 PTO | 121 (89) | 30 (40) | 3500 | 5 | 7.5″ |
| 2.88 | ITR12111107 | with BD110 PTO | 100 (74) | 30 (40) | 3500 | 5 | 7.5″ |
| 3.40 | ITR12111112 | with BD110 PTO | 80 (59) | 30 (40) | 3500 | 5 | 7.5″ |
| 4.00 | ITR12111110 | with BD110 PTO | 80 (59) | 30 (40) | 3500 | 5 | 7.5″ |
| 5.00 | ITR12111108 | with BD110 PTO | 71 (52) | 30 (40) | 3500 | 5 | 7.5″ |
| 0.67 | ITR12122109 | with BD112 PTO | 165 (122) | 30 (40) | 2800 | 4 | 7.5″ |
| 1.00 | ITR12122105 | with BD112 PTO | 161 (119) | 30 (40) | 3500 | 4 | 7.5″ |
| 2.00 | ITR12122106 | with BD112 PTO | 121 (89) | 30 (40) | 3500 | 4 | 7.5″ |
| 2.88 | ITR12122107 | with BD112 PTO | 100 (74) | 30 (40) | 3500 | 4 | 7.5″ |
| 3.40 | ITR12122112 | with BD112 PTO | 80 (59) | 30 (40) | 3500 | 4 | 7.5″ |
| 4.00 | ITR12122110 | with BD112 PTO | 80 (59) | 30 (40) | 3500 | 4 | 7.5″ |
| 5.00 | ITR12122108 | with BD112 PTO | 71 (52) | 30 (40) | 3500 | 4 | 7.5″ |
| 0.67 | ITR12122009 | with BD112 PTO | 165 (122) | 30 (40) | 2800 | 4 | 8.0″ |
| 1.00 | ITR12122005 | with BD112 PTO | 161 (119) | 30 (40) | 3500 | 4 | 8.0″ |
| 2.00 | ITR12122006 | with BD112 PTO | 121 (89) | 30 (40) | 3500 | 4 | 8.0″ |
| 2.88 | ITR12122007 | with BD112 PTO | 100 (74) | 30 (40) | 3500 | 4 | 8.0″ |
| 3.40 | ITR12122012 | with BD112 PTO | 80 (59) | 30 (40) | 3500 | 4 | 8.0″ |
| 4.00 | ITR12122010 | with BD112 PTO | 80 (59) | 30 (40) | 3500 | 4 | 8.0″ |
| 5.00 | ITR12122008 | with BD112 PTO | 71 (52) | 30 (40) | 3500 | 4 | 8.0″ |
| 0.67 | ITR12132009 | with BD118 PTO | 165 (122) | 30 (40) | 2800 | 4 | 8.0″ |
| 1.00 | ITR12132005 | with BD118 PTO | 161 (119) | 30 (40) | 3500 | 4 | 8.0″ |
| 2.00 | ITR12132006 | with BD118 PTO | 121 (89) | 30 (40) | 3500 | 4 | 8.0″ |
| 2.88 | ITR12132007 | with BD118 PTO | 100 (74) | 30 (40) | 3500 | 4 | 8.0″ |
| 3.40 | ITR12132012 | with BD118 PTO | 80 (59) | 30 (40) | 3500 | 4 | 8.0″ |
| 4.00 | ITR12132010 | with BD118 PTO | 80 (59) | 30 (40) | 3500 | 4 | 8.0″ |
| 5.00 | ITR12132008 | with BD118 PTO | 71 (52) | 30 (40) | 3500 | 4 | 8.0″ |
| 0.67 | ITR12230009 | with BDS118 Remote PTO | 165 (122) | 30 (40) | 2800 | N/A | N/A |
| 1.00 | ITR12230005 | with BDS118 Remote PTO | 75 (56) | 15 (20) | 3500 | N/A | N/A |
| 2.00 | ITR12230006 | with BDS118 Remote PTO | 121 (89) | 30 (40) | 3500 | N/A | N/A |
| 2.88 | ITR12230007 | with BDS118 Remote PTO | 100 (74) | 30 (40) | 3500 | N/A | N/A |
| 3.40 | ITR12230012 | with BDS118 Remote PTO | 80 (59) | 30 (40) | 3500 | N/A | N/A |
| 4.00 | ITR12230010 | with BDS118 Remote PTO | 80 (59) | 30 (40) | 3500 | N/A | N/A |
| 5.00 | ITR12230008 | with BDS118 Remote PTO | 71 (52) | 30 (40) | 3500 | N/A | N/A |

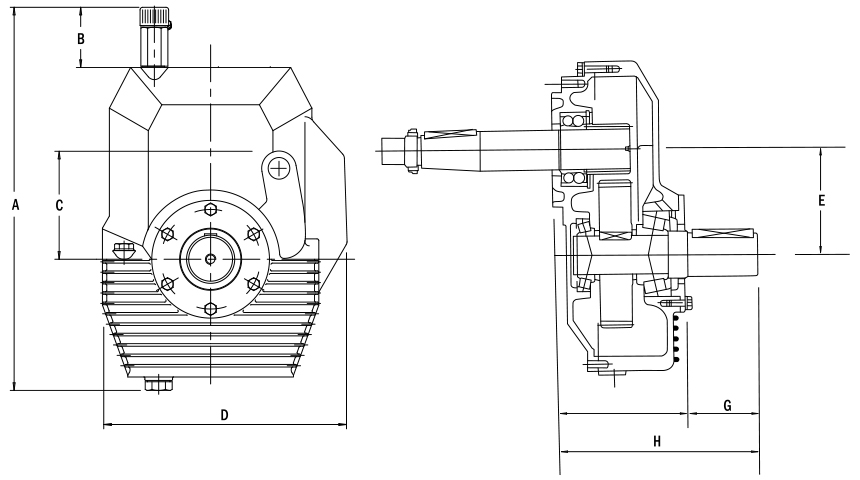

| A | B | C | D | E | F | G | H | |
| RM20 | 301.0 (11.85) | 64.5 (2.54) | 67.5 (2.66) | 192.0 (7.56) | 67.5 (2.66) | 107.0 (4.21) | 50.0 (1.97) | 157.0 (6.18) |
| RM45 | 375.0 (14.76) | 68.5 (2.70) | 88.5 (3.48) | 233.0 (9.17) | 88.5 (3.48) | 131.0 (5.16) | 70.0 (2.76) | 201.0 (7.91) |
| RM70 | 443.0 (17.44) | 68.5 (2.70) | 121.5 (4.78) | 283.0 (11.14) | 121.5 (4.78) | 142.0 (5.59) | 80.0 (3.15) | 222.0 (8.74) |
| RM100 | 459.0 (18.07) | 68.5 (2.70) | 135.0 (5.31) | 311.0 (12.24) | 135.0 (5.31) | 172.0 (6.77) | 120.0 (4.72) | 292.0 (11.50) |
| RM120 | 545.0 (21.46) | 68.5 (2.70) | 160.0 (6.30) | 378.0 (14.88) | 160.0 (6.30) | 200.0 (7.87) | 140.0 (5.51) | 340.0 (13.39) |
| RM150 | 613.0 (24.13) | 68.5 (2.70) | 189.0 (7.44) | 419.0 (16.50) | 189.0 (7.44) | 262.0 (10.31) | 140.0 (5.51) | 402.0 (15.83) |
