| Ratio (X :1) | Part Number | Configuration | Max. Input Torque Nm (lb-ft) | Max. Power Allowed Without H.E. kW (hp) | Maximum Input Shaft Speed | SAE Housing | Clutch Size |
| 0.58 | ITR13342015 | Housing | 290 (215) | 48 (64) | 2500 | 4 | 10.0″ |
| 1.00 | ITR13342009 | Housing | 290 (215) | 48 (64) | 3200 | 4 | 10.0″ |
| 1.53 | ITR13342008 | Housing | 250 (185) | 48 (64) | 3200 | 4 | 10.0″ |
| 2.00 | ITR13342010 | Housing | 210 (156) | 48 (64) | 3200 | 4 | 10.0″ |
| 2.45 | ITR13342014 | Housing | 190 (141) | 48 (64) | 3200 | 4 | 10.0″ |
| 3.00 | ITR13342011 | Housing | 170 (126) | 48 (64) | 3200 | 4 | 10.0″ |
| 3.75 | ITR13342012 | Housing | 155 (115) | 48 (64) | 3200 | 4 | 10.0″ |
| 0.58 | ITR13341015 | Housing | 290 (215) | 48 (64) | 2500 | 3 | 10.0″ |
| 1.00 | ITR13341009 | Housing | 290 (215) | 48 (64) | 3200 | 3 | 10.0″ |
| 1.53 | ITR13341008 | Housing | 250 (185) | 48 (64) | 3200 | 3 | 10.0″ |
| 2.00 | ITR13341010 | Housing | 210 (156) | 48 (64) | 3200 | 3 | 10.0″ |
| 2.45 | ITR13341014 | Housing | 190 (141) | 48 (64) | 3200 | 3 | 10.0″ |
| 3.00 | ITR13341011 | Housing | 170 (126) | 48 (64) | 3200 | 3 | 10.0″ |
| 3.75 | ITR13341012 | Housing | 155 (115) | 48 (64) | 3200 | 3 | 10.0″ |
| 0.58 | ITR13112015 | with BD130 PTO | 290 (215) | 48 (64) | 2500 | 4 | 10.0″ |
| 1.00 | ITR13112009 | with BD130 PTO | 290 (215) | 48 (64) | 3200 | 4 | 10.0″ |
| 1.53 | ITR13112008 | with BD130 PTO | 250 (185) | 48 (64) | 3200 | 4 | 10.0″ |
| 2.00 | ITR13112010 | with BD130 PTO | 210 (156) | 48 (64) | 3200 | 4 | 10.0″ |
| 2.45 | ITR13112014 | with BD130 PTO | 190 (141) | 48 (64) | 3200 | 4 | 10.0″ |
| 3.00 | ITR13112011 | with BD130 PTO | 170 (126) | 48 (64) | 3200 | 4 | 10.0″ |
| 3.75 | ITR13112012 | with BD130 PTO | 155 (115) | 48 (64) | 3200 | 4 | 10.0″ |
| 0.58 | ITR13111015 | with BD130 PTO | 290 (215) | 48 (64) | 2500 | 3 | 10.0″ |
| 1.00 | ITR13111009 | with BD130 PTO | 290 (215) | 48 (64) | 3200 | 3 | 10.0″ |
| 1.53 | ITR13111008 | with BD130 PTO | 250 (185) | 48 (64) | 3200 | 3 | 10.0″ |
| 2.00 | ITR13111010 | with BD130 PTO | 210 (156) | 48 (64) | 3200 | 3 | 10.0″ |
| 2.45 | ITR13111014 | with BD130 PTO | 190 (141) | 48 (64) | 3200 | 3 | 10.0″ |
| 3.00 | ITR13111011 | with BD130 PTO | 170 (126) | 48 (64) | 3200 | 3 | 10.0″ |
| 3.75 | ITR13111012 | with BD130 PTO | 155 (115) | 48 (64) | 3200 | 3 | 10.0″ |
| 0.58 | ITR13210015 | with BDS130 Remote PTO | 290 (215) | 48 (64) | 2500 | N/A | N/A |
| 1.00 | ITR13210009 | with BDS130 Remote PTO | 290 (215) | 48 (64) | 3200 | N/A | N/A |
| 1.53 | ITR13210008 | with BDS130 Remote PTO | 250 (185) | 48 (64) | 3200 | N/A | N/A |
| 2.00 | ITR13210010 | with BDS130 Remote PTO | 210 (156) | 48 (64) | 3200 | N/A | N/A |
| 2.45 | ITR13210014 | with BDS130 Remote PTO | 190 (141) | 48 (64) | 3200 | N/A | N/A |
| 3.00 | ITR13210011 | with BDS130 Remote PTO | 170 (126) | 48 (64) | 3200 | N/A | N/A |
| 3.75 | ITR13210012 | with BDS130 Remote PTO | 155 (115) | 48 (64) | 3200 | N/A | N/A |

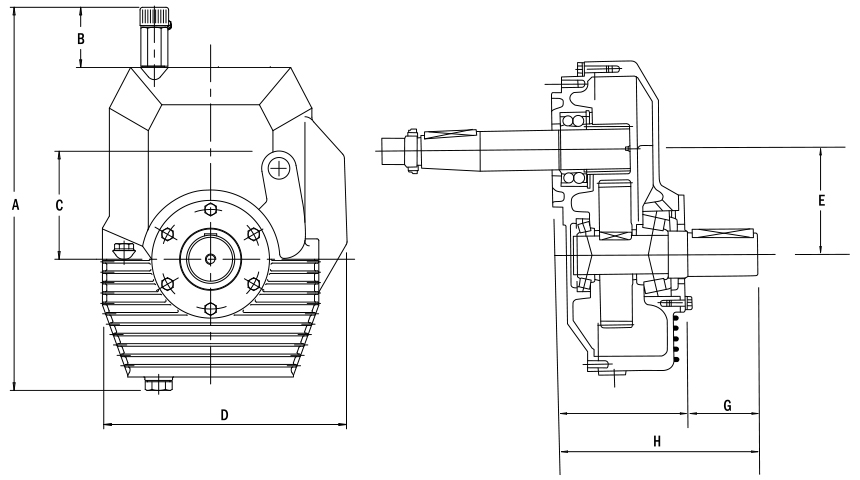

| A | B | C | D | E | F | G | H | |
| RM20 | 301.0 (11.85) | 64.5 (2.54) | 67.5 (2.66) | 192.0 (7.56) | 67.5 (2.66) | 107.0 (4.21) | 50.0 (1.97) | 157.0 (6.18) |
| RM45 | 375.0 (14.76) | 68.5 (2.70) | 88.5 (3.48) | 233.0 (9.17) | 88.5 (3.48) | 131.0 (5.16) | 70.0 (2.76) | 201.0 (7.91) |
| RM70 | 443.0 (17.44) | 68.5 (2.70) | 121.5 (4.78) | 283.0 (11.14) | 121.5 (4.78) | 142.0 (5.59) | 80.0 (3.15) | 222.0 (8.74) |
| RM100 | 459.0 (18.07) | 68.5 (2.70) | 135.0 (5.31) | 311.0 (12.24) | 135.0 (5.31) | 172.0 (6.77) | 120.0 (4.72) | 292.0 (11.50) |
| RM120 | 545.0 (21.46) | 68.5 (2.70) | 160.0 (6.30) | 378.0 (14.88) | 160.0 (6.30) | 200.0 (7.87) | 140.0 (5.51) | 340.0 (13.39) |
| RM150 | 613.0 (24.13) | 68.5 (2.70) | 189.0 (7.44) | 419.0 (16.50) | 189.0 (7.44) | 262.0 (10.31) | 140.0 (5.51) | 402.0 (15.83) |
