| Ratio (X :1) | Part Number | Configuration | Max. Input Torque Nm (lb-ft) | Max. Power Allowed Without H.E. kW (hp) | Maximum Input Shaft Speed | SAE Housing | Flywheel Size |
| 0.50 | ITR13342004 | Housing | 280 (207) | 38 (51) | 2400 | 4 | 10.0″ |
| 0.63 | ITR13342005 | Housing | 280 (207) | 38 (51) | 2600 | 4 | 10.0″ |
| 0.70 | ITR13342006 | Housing | 260 (193) | 38 (51) | 2700 | 4 | 10.0″ |
| 1.32 | ITR13342003 | Housing | 220 (163) | 38 (51) | 3200 | 4 | 10.0″ |
| 1.88 | ITR13342001 | Housing | 200 (148) | 38 (51) | 3200 | 4 | 10.0″ |
| 2.73 | ITR13342002 | Housing | 160 (119) | 38 (51) | 3200 | 4 | 10.0″ |
| 3.25 | ITR13342016 | Housing | 120 (89) | 38 (51) | 3200 | 4 | 10.0″ |
| 0.50 | ITR13341004 | Housing | 280 (207) | 38 (51) | 2400 | 3 | 10.0″ |
| 0.63 | ITR13341005 | Housing | 280 (207) | 38 (51) | 2600 | 3 | 10.0″ |
| 0.70 | ITR13341006 | Housing | 260 (193) | 38 (51) | 2700 | 3 | 10.0″ |
| 1.32 | ITR13341003 | Housing | 220 (163) | 38 (51) | 3200 | 3 | 10.0″ |
| 1.88 | ITR13341001 | Housing | 200 (148) | 38 (51) | 3200 | 3 | 10.0″ |
| 2.73 | ITR13341002 | Housing | 160 (119) | 38 (51) | 3200 | 3 | 10.0″ |
| 3.25 | ITR13341016 | Housing | 120 (89) | 38 (51) | 3200 | 3 | 10.0″ |
| 0.50 | ITR13112004 | with BD130 PTO | 280 (207) | 38 (51) | 2400 | 4 | 10.0″ |
| 0.63 | ITR13112005 | with BD130 PTO | 280 (207) | 38 (51) | 2600 | 4 | 10.0″ |
| 0.70 | ITR13112006 | with BD130 PTO | 260 (193) | 38 (51) | 2700 | 4 | 10.0″ |
| 1.32 | ITR13112003 | with BD130 PTO | 220 (163) | 38 (51) | 3200 | 4 | 10.0″ |
| 1.88 | ITR13112001 | with BD130 PTO | 200 (148) | 38 (51) | 3200 | 4 | 10.0″ |
| 2.73 | ITR13112002 | with BD130 PTO | 160 (119) | 38 (51) | 3200 | 4 | 10.0″ |
| 3.25 | ITR13112016 | with BD130 PTO | 120 (89) | 38 (51) | 3200 | 4 | 10.0″ |
| 0.50 | ITR13111004 | with BD130 PTO | 280 (207) | 38 (51) | 2400 | 3 | 10.0″ |
| 0.63 | ITR13111005 | with BD130 PTO | 280 (207) | 38 (51) | 2600 | 3 | 10.0″ |
| 0.70 | ITR13111006 | with BD130 PTO | 260 (193) | 38 (51) | 2700 | 3 | 10.0″ |
| 1.32 | ITR13111003 | with BD130 PTO | 220 (163) | 38 (51) | 3200 | 3 | 10.0″ |
| 1.88 | ITR13111001 | with BD130 PTO | 200 (148) | 38 (51) | 3200 | 3 | 10.0″ |
| 2.73 | ITR13111002 | with BD130 PTO | 160 (119) | 38 (51) | 3200 | 3 | 10.0″ |
| 3.25 | TR13111016 | with BD130 PTO | 120 (89) | 38 (51) | 3200 | 3 | 10.0″ |
| 0.50 | ITR13210004 | with BDS130 Remote PTO | 280 (207) | 38 (51) | 2400 | N/A | N/A |
| 0.63 | ITR13210005 | with BDS130 Remote PTO | 280 (207) | 38 (51) | 2600 | N/A | N/A |
| 0.70 | ITR13210006 | with BDS130 Remote PTO | 260 (193) | 38 (51) | 2700 | N/A | N/A |
| 1.32 | ITR13210003 | with BDS130 Remote PTO | 220 (163) | 38 (51) | 3200 | N/A | N/A |
| 1.88 | ITR13210001 | with BDS130 Remote PTO | 200 (148) | 38 (51) | 3200 | N/A | N/A |
| 2.73 | ITR13210002 | with BDS130 Remote PTO | 160 (119) | 38 (51) | 3200 | N/A | N/A |
| 3.25 | ITR13210016 | with BDS130 Remote PTO | 120 (89) | 38 (51) | 3200 | N/A | N/A |

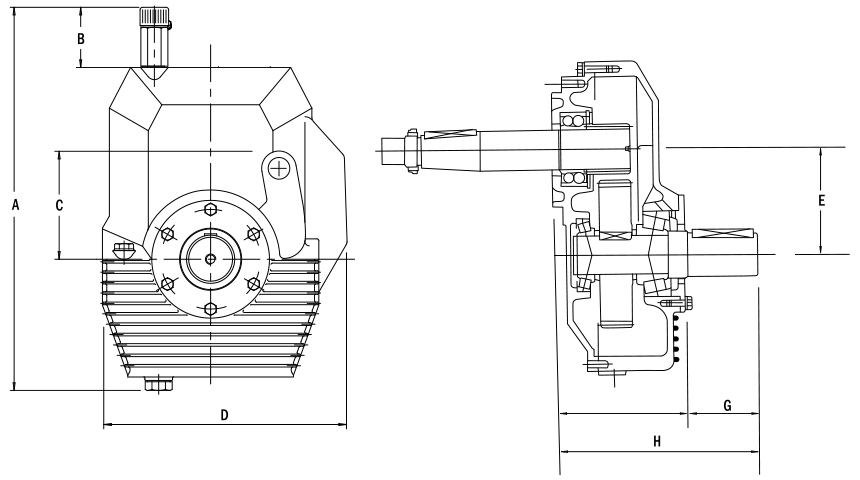

| A | B | C | D | E | F | G | H | |
| RM20 | 301.0 (11.85) | 64.5 (2.54) | 67.5 (2.66) | 192.0 (7.56) | 67.5 (2.66) | 107.0 (4.21) | 50.0 (1.97) | 157.0 (6.18) |
| RM45 | 375.0 (14.76) | 68.5 (2.70) | 88.5 (3.48) | 233.0 (9.17) | 88.5 (3.48) | 131.0 (5.16) | 70.0 (2.76) | 201.0 (7.91) |
| RM70 | 443.0 (17.44) | 68.5 (2.70) | 121.5 (4.78) | 283.0 (11.14) | 121.5 (4.78) | 142.0 (5.59) | 80.0 (3.15) | 222.0 (8.74) |
| RM100 | 459.0 (18.07) | 68.5 (2.70) | 135.0 (5.31) | 311.0 (12.24) | 135.0 (5.31) | 172.0 (6.77) | 120.0 (4.72) | 292.0 (11.50) |
| RM120 | 545.0 (21.46) | 68.5 (2.70) | 160.0 (6.30) | 378.0 (14.88) | 160.0 (6.30) | 200.0 (7.87) | 140.0 (5.51) | 340.0 (13.39) |
| RM150 | 613.0 (24.13) | 68.5 (2.70) | 189.0 (7.44) | 419.0 (16.50) | 189.0 (7.44) | 262.0 (10.31) | 140.0 (5.51) | 402.0 (15.83) |
